Outdoor UGV
It is a by-wire robot chassis thatprovides a carrier platform idea for outdoor use due to its high duty capacity and good robustness.
  • Details
  • Parameters

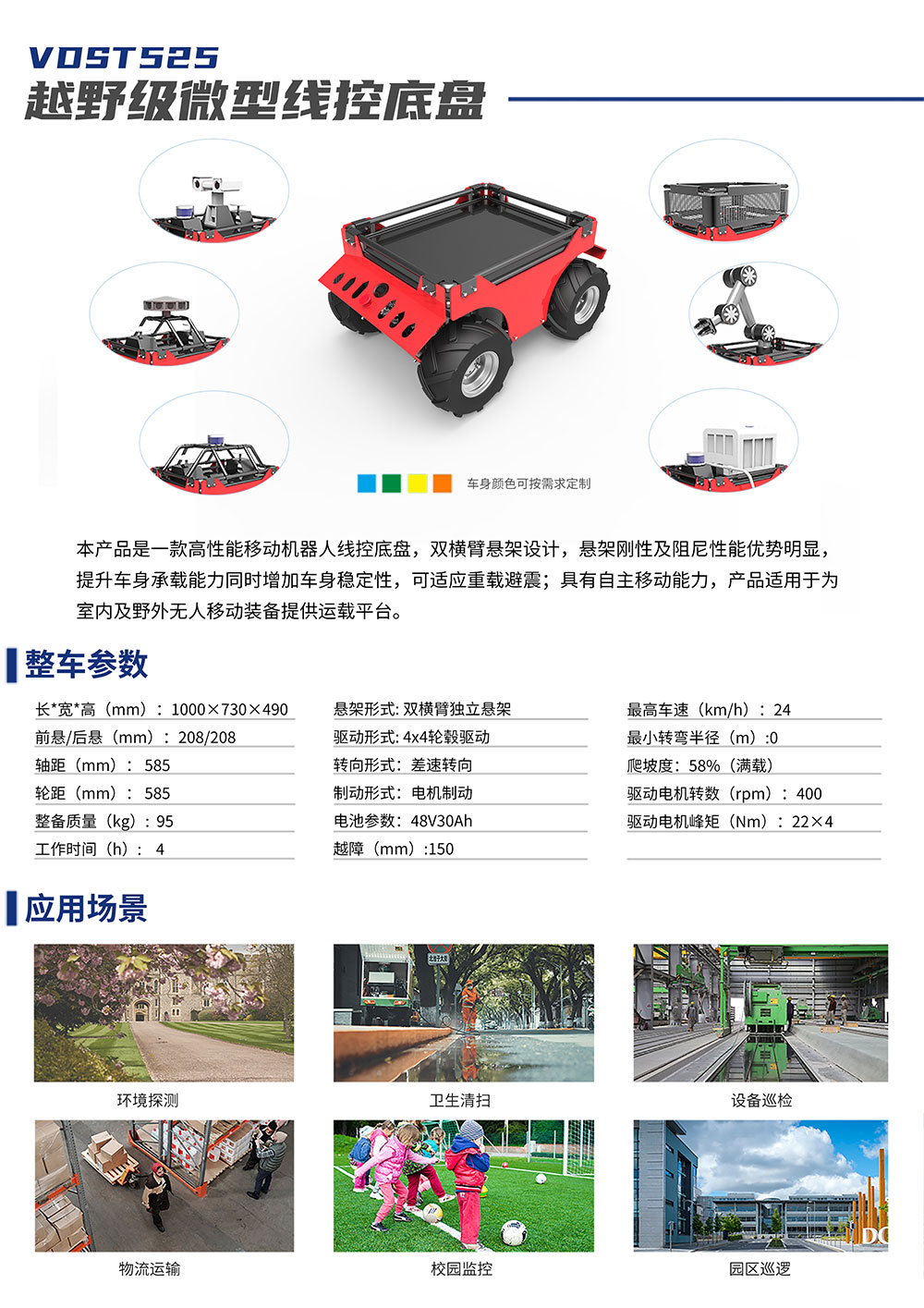

Technical parameters of Outdoor UGV:

Dimension (mm)1000×730×395(490) (Including body)Wheelbase (mm)585
Wheel Distance (mm)585Range (km)≥100(Isokinetic method)
Weight (kg)95Drive4x4 wheel drive
Suspension Double wishbone independent suspensionSteeringDifferential steering
BrakingMotor brakeBattery52V30Ah
Minimum turning radius (m)0Maximum speed (km/h)24
Gradeability58%(full load)Drive motor revolutions (rpm)400
Rated torque of drive motor (Nm))45Overcoming obstacles (mm)150
